interCAD® Basic and Probe

OrCAD to PCB Layout Interface and Design Automation

interCAD® Basic and Probe
OrCAD to PCB Layout Interface
Design Automation
Cross Probing

interCAD Basic and Probe supports ECO(To-Layout), Cross-Probing, Forward/Back Annotation among heterogeneous tools.
Error-free design among heterogeneous tools is possible by verifying human-errors.
This is the software which can innovatively enhance the design speed
with automation functions which has not been provided from ECAD tools.

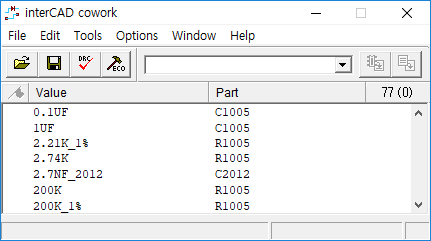

Introduce
Using circuit reported by OrCAD Capture, this program allows you to create PCB Layout data easily and more accurately.
It also provides DRC function that can check forward annotation, circuit netlist, and library mapping errors based on circuit standard.
You can select component/net/pin (cross-probing) from each different circuit and layout as if they are in one program.
If design revision occurs, it can update the changed design information with saving information of on-going routing/placement.

Forward Annotation
It allows you to create layout data and update them by using OrCAD circuit. Also, it provides PCB Library inputting function that can prevent human errors when you edit netlist directly.
Back Annotation
You can update the changed information such as layout's RefDes, PCB footprint, Component location, and RefDes location on OrCAD.

Basic Pro Option
It provides full functions of interCAD Basic and specialized automatic functions.
Excel Netlist to PADS Layout
You can create PADS layout data and update the changed information by using excel netlist data.
It provides DRC function checking errors from excel netlist data.

Easy and Fast Layout Footprint Setting
Footprints of the component used in OrCAD circuit can be directly selected in layout tool and matched easily and accurately.
Importing Existing Footprint Setting of Layout Data
Managing Footprint Setting Version
Managing Footprint Change History

DRC
It can verify design errors that might occur in the process of creating layout data by using OrCAD circuit.
Netlist Special Characters (blank) or Korean Usage
One Pin of OrCAD circuit
Managing Between Circuit's Symbol and PCB Library
Connecting Off page Net

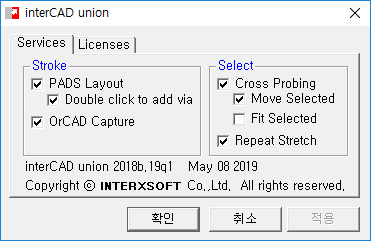

Introduce
Union can allow you to use EDA tools that are interfaced with innovative design automation, DRC functions, and reporting functions; those functions have not supported by existing PCB Design EDA tools. Especially, it provides plug-in formed menu and keyboard shortcuts on PADS Layout, Board Station, OrCAD Capture program without additional programs.

Placement Block Copy
If there are a number of same blocks, you can place one block at first, and then you can get other blocks copied as you placed it at first.
Net Length Report
The length of chosen traces and routed nets between connected components can be reported.
The length of nets source pin to load pin can be also reported in case of different parts in the net are connected.

Basic Pro Option
It provides full functions of interCAD Basic and specialized automatic functions.
Delete Antenna Via
You can delete the existing Antenna Via on the whole board after collective verification
Insert via Function on the Center of Trace Pattern
It can calculate the center location of trace pattern. Then it automatically finds the center spot and generates via on that location.

Trace Tune
It can tune the trace of the Net based on the length set by Hi-Speed Rule value.
Decal Generation and Component Placement Using Excel Coordinated Data
It can create the library and place components using excel coordinated data.
Automatic LGA PAD Placement
The program automatically calculates and places the nearest and easiest wiring order and location of the LGA PAD connected to the component.
Select Via/Component Connected to the Chosen Net
You can select via that is connected to the chosen net.
